This study follows up on a recent discussion about interaction information [1,2,3,4]. In that discussion, I argued that the concurrent generation of probabilistic entropy (with “the arrow of time” ) and redundancy (against the arrow of time) in complex systems could be made measurable by considering the Q-measure as an imprint of meaning processing on information processing . If a modeling system, for example, feeds back from the perspective of hindsight on the modeled one by providing the latter with meaning, a complex interaction between information and redundancy generating mechanisms can be expected. Might it be possible to measure the outcome of this balance as a difference?
Krippendorff  responded to this question for another interpretation of Q by elaborating the formula R = I – Q (or equivalently Q = I – R). In this formula, R indicates redundancy which, in Krippendorff’s formulation, is generated by a (Boolean) observer who assumes independence among three (or more) probability distributions, whereas IABC→AB:AC:BC measures the (Shannon-type) interaction information generated in the system in addition to the lower-level (i.e., bilateral) interactions. In other words, R is generated at the level of the model entertained by an observer because of the assumption that the probability distributions are independent. Given this assumption of independence, the algebraic derivation of Q is valid because circular relations among the variables cannot occur under this condition and all probabilities add up to unity. However, R measures the error caused by this assumption if the distributions are not independent.
In this contribution to the discussion, I shall argue that this possibility of using I and Q to measure R enables us to address the question of how to measure the impact of the communication of meaning in a system which provides meaning to the events by entertaining a model. The Boolean observer who makes an error can be considered as the simplest case of a model maker. Using Q, the error in the expectations can be quantified (in terms of bits of information) in addition to interaction information IABC→AB:AC:BC in the modeled system. In a final section, I provide empirical examples of how one can measure, for example, the effects of intellectual organization as an order of expectations of textual organization in interactions among (three or more) attributes of documents.
2. Dually Layered Systems Entertaining a Model of Themselves
Anticipatory systems were defined by Rosen  as systems which entertain a model of themselves. Since the modeling module is part of the system to be modeled, this reasoning would lead to an infinite regress. However, Dubois  showed that this problem can be solved by introducing incursive and hyper-incursive equations into the computation of anticipatory systems. Unlike a recursive equation—which refers for the computation of its current state to a previous state (t – 1)—an incursive equation refers also to states in the present among its independent variables, and a hyper-incursive one refers to future states as co-constructors of present states.
xt+1 = ½ ± ½ √[1 – (4/a) xt]
This equation has two real roots for a ≥ 4. As is well known, the (recursive) logistic equation is defined only for a < 4; the solutions become increasingly chaotic as a approaches four. In other words, a = 4 functions as a divide between the domain of the recursive version of the equation (along the arrow of time) and the hyper-incursive version (against the arrow of time). Furthermore, the incursive version of this equation generates a steady state for all values of a as follows: x = (a – 1)/a . This continuous curve crosses the noted divide between the two domains [10,11].
In general, a model advances in time with reference to the present state of the modeled system. In other words, the model contains a prediction of a next state of the system. Hyper-incursive equations show how models may additionally feed back on the present state of the modeled system. The total system—that is, the system including its modeling subroutines—develops over time and thus generates entropy . The model, however, reverses the time axis and thus can be expected to generate redundancy.
In other words, a model provides meaning to the modeled system. Meaning can be communicated in a reflexive discourse entertaining different models: a discursive model enables us to feed back on the system under study. This hyper-incursive meaning processing—formulated in Equation 1 exclusively in terms of possible future states—can be instantiated incursively by a reflexive observer who herself operates with an expectation in the present and historically with reference to a previous state. The model is thus instantiated .
The communication of meaning cannot be expected to be directly measurable because, unlike the communication of information, hyper-incursive communication of meaning generates only redundancy. When the communication of meaning occurs within the system, however, this communication at a next-order level may make a difference for the communication of information by being instantiated locally within a historical process of information exchanges. The latter process necessarily generates probabilistic entropy, while the next-order level of meaning exchange can from this perspective also be considered as an exogenous network variable potentially restricting the options . The model constrains the number of possible states in the system and can thus be considered as a filter reducing the uncertainty that prevails.
3. The Measurement of Redundancy and Interaction Information
Might one be able to measure the reduction of uncertainty in an information processing system which entertains a model of itself? The generation of redundancy in information exchanges has been studied as a possible outcome of mutual information among three or more dimensions. Ulanowicz  for example, suggested using this local reduction of uncertainty as an indicator of “ascendency.”
Depending on how the different variations disturb and condition one another, the outcome of this measure can be positive, negative, or zero. In other words, the interactions among three sources of variance may reduce the uncertainty which prevails at the systems level.
Krippendorff [1,2] convincingly showed that multivariate Q-measures of interaction information cannot be considered as Shannon-type information. Watanabe  had made the same argument, but this was forgotten in the blossoming literature using Q-measures for the measurement of “configurational information” . Yeung  used the deviant symbol μ* to indicate that mutual information in three or more dimensions is not Shannon-type information. However, Krippendorff specified in detail why the reasoning among the proponents of this measure as an information statistics (about probability distributions) is mistaken: when more than two probability distributions are multiplied, loops can be expected to disturb what seems algebraically a perfect derivation. The probabilities may no longer add up to unity, and in that case a major assumption of probability theory (Σipi = 1) is violated.
Building on earlier work, Krippendorff [1,23,24] proposed another algorithm which approximates interaction information in three or more dimensions iteratively by using maximum entropies. This interaction information (denoted in the case of three dimensions as IABC→AB:AC:BC) is Shannon-type information: it is the surplus information potentially generated in the three-way interactions which cannot be accounted for by the two-way interactions.
As noted, Krippendorff  provided an interpretation of Q expressed as Q = I – R. In this formula, R indicates redundancy which is generated at the level of the model entertained by an observer on the basis of the assumption that the probability distributions are independent and therefore multiplication is allowed. Given this assumption of independence, the algebraic derivation of Q is valid because circular relations among the variables cannot occur and all probabilities add up to unity. However, when this assumption is not true, a Shannon-type information IABC→AB:AC:BC is necessarily generated. Q can be positive or negative (or zero) depending on the difference between R and I.

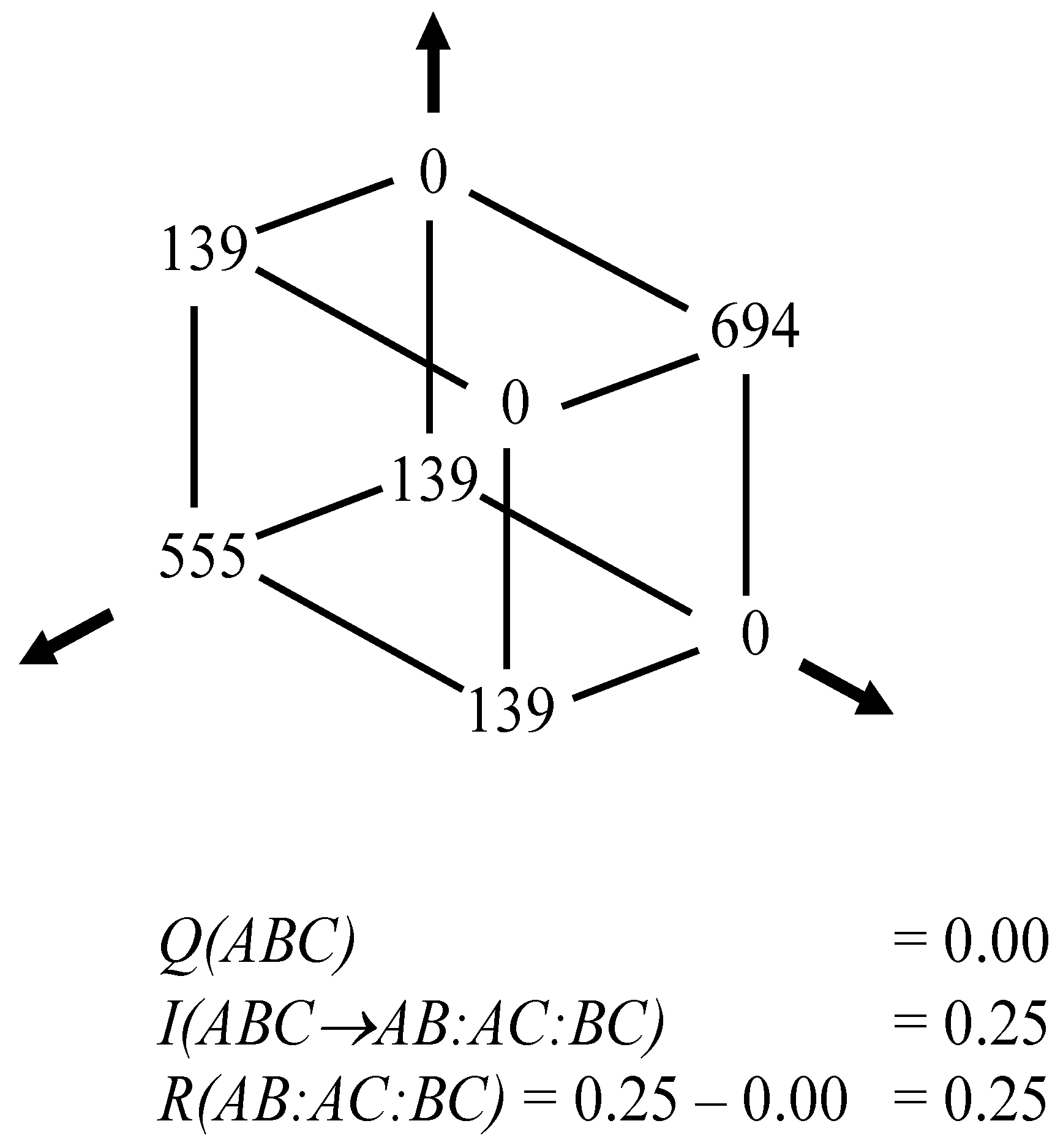

Figure 1. Example of positive ternary interaction with Q = 0 .
Figure 1. Example of positive ternary interaction with Q = 0 .
In other words, Q = 0 should not be interpreted as the absence of interaction information, but only as an indicator of R = I.Figure 1 shows that the presence of (Shannon-type) interaction information I is compatible with the absence of a value for Q.Q cannot be interpreted as a unique property of the interactions. In other words, not Q, but R is urgently to be provided with an interpretation. Q can only be considered as the difference between the positive interaction information in the modeled system and redundancy generated in the model.
4. An Empirical Interpretation of R
R cannot be measured directly, but one can retrieve both I and Q from the data. For the measurement of IABC→AB:AC:BC, Krippendorff’s iterative algorithm is available, and Q can be computed using Equation 4. Because IABC→AB:AC:BC is a Shannon-type information it cannot be negative. μ* (= –Q) has to be added to (or subtracted from) I in order to find R.
Krippendorff  noted that in Shannon’s information theory processes can flow only in a single direction, that is, with the arrow of time: “Accordingly, a message received could have no effect on the message sent”. Meaning, however, is provided to the message from the perspective of hindsight, and meaning processing can be expected to operate orthogonally to—albeit potentially in interaction with—information processing. The modeling aims to reduce complexity and thus may add to redundancy without necessarily affecting the information processing. In the case of this independence, the model’s expected information content remains “hot air” only specifying other possible states. However, if the meaning processing is made relevant to the information processing system, an imprint is generated. This imprint makes a difference and can be measured as Q, that is, the difference between interaction information in the modeled subsystem and redundancy in the modeling subroutine.
What type of (meta-)model might model this relation between information processing and meaning processing in numerical terms? Let me propose a rotated three-factor model as an example of a model of constructs that can be provided with meaning in terms of observable variables. The factor model assumes orthogonality among the (three or more) dimensions and one can measure the relations among these dimensions in terms of the factor loadings of the variables . In other words, the data matrix represents a first-order network in which a second-order structure among the variables can be hypothesized using factor analysis.
The dimensions of the second-order structure are latent at the first-order level; they remain expectations about the main dimensions that span the network. By using orthogonal rotation among the factors, one can assure that the dimensions are analytically independent. Let us assume a three-factor model because the interactions among three dimensions provide us with the most parsimonious example for analyzing the problem of how redundancy because of data reduction operates in relation to interaction information .
The factor model spans a three-dimensional space in which the variables can be positioned as vectors. The variables are associated with the eigenvectors in terms of the factor loadings. (Factor loadings are by definition equal to Pearson correlation coefficients between variables and factors.) In other words, the (orthogonally rotated) factor matrix provides us with a representation of the variables in three main dimensions. Among these three dimensions one can compute an IABC→AB:AC:BC, μ*, and therefore R. From this perspective, the difference between R and I can be considered as the remaining redundancy of the model that is not consumed by the Shannon information contained in the empirical distributions. If R < I, this difference can be considered as remaining uncertainty.
While R is a property of the model and cannot be measured directly, the remaining redundancy or uncertainty (R – I) can be provided with historical meaning because it is manifest in the instantiation as μ* (= –Q). Remaining redundancy can be considered as redundancy that could have been filled by the events. Remaining uncertainty would indicate that the model is not sufficiently complex to reduce all uncertainty in the data. Note that our meta-model assumes that the model generating R
